acrylic sheets cutting machine, wood cut, wood engraving, ploywood
cut, stone engraving, laser cut, 150w tube,

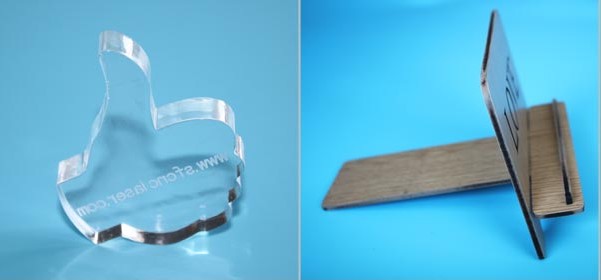

M-1325L flatbed co2 laser cutting machine is equiped with co2 laser
tube, can be used for cutting nonmetal materials such as
acrylic,plastic,paper,wood,plywood,MDF,fabric,leather,etc;and can
engrave on nonmetal materials such as stone
,glass,acrylic,wood,bamboo,rubber,leather,etc.
Technical Parameter:
| Model | M-1325L laser
cutting systems |
| Processing Area | 1300mm*2600mm |
| Laser Power | 150W (peak value can be up to 180w) |
| Laser Type | Sealed Co2 glass laser tube |
| Working Table | Blades |
| Cooling Mode | water cooling and protection system |
| Graphic Format Supported | BMP,PLT,DST,AI,DXF etc |
| Resetting Positioning Accuracy | ±0.05mm |
| Working Speed | 1-600mm/s |
| Resolution Ratio | ≤0.0125mm |
| Driving Mode | DC0.8A 24V stepper motor |
| Working Voltage | AC 110 - 220V±10%,50 - 60Hz,10A max |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |
| Driving System | Stepper(option servo) |
Machine Feature:
1. The machine adopt advanced DSP control system which continue and
optimize the cutting speed, processing path, improve the working
efficiency. the clearance compensation ensure the processing
quality.
2.Fully supported CAD,CORELDRAW,PHOTOSHOP software, friendly
man-computer interface.
3.In the process of designing and producing-----stable mechanical
design, imported linear guide rail and precision gear, make sure
the high speed and high precision.
4. Special treatment easily changeable blade or honeycomb
worktable, easy maintains.
5.Widely used, make the large size and kinds of common board
processing by laser machine possible
6.Reasonable design of laser line with the industry water chiller,
keep the same power-force on each spot, ensure the quality of
cutting
7.Multi-document function: the machine can store 256 files. the
machine can still work out of computer.
