Atomatic aligning feeding V grooving machine digital carton paper grooving machine for making rigid boxes

Introduction

LS-1200B Automatic high speed grooving machine is newly invented based on the experience of older roller groover. We apply the new technology which uses some belts to bind the card board and the roller together to convey the cardboard. This technology makes the groove straight and correctly. Thereby the products are on great quality.

Advantage

High speed
Automatic feeding
Dustless and no noise
Automatic collecting
No rough edge
Automatic aligning
Grooving angle adjustable from 75°to 140°

Product range

1--4mm cardboard
1--3mm MDF
0.4--1mm thin paper
Triangle cardboard

Machine Parts

Name: Wireless belt

Original: Italy

The autpmatic feeding part has applied the wireless belt which is imported from Italy. It has higher friction force and durable. It doesn`t need to adjust the pressure of each belt. so that will save the time to adjust machine.

Main Features

Name: Self --alligh system
Original: China
It is applied the iron shot and spring to convey the cardboard to the grooving area. This system ensure the cardboard go straight and keep the accuracy of cardboard grooving.

Name: Big roller
Original: China
The diameter of this roller is 60cm. It can groove the cardboard size at 140*120mm to 800*600mm. After applying the roller and belt to convey the cardboard, the grooving speed become faster.

Name: Blade holder
Original: China
It is using for hold the blade. The distance between blade and roller is adjustable

Specification

Quantity of Groove at a time 8 slots
Working speed 40m/min (150-200 pcs/min)
Cardboard size 140*120-800*600mm
Cardboard thickness 1-4mm
MDF Thickness 3mm (MAX)
Grooving distance (min) 0
Angle of the grooves 75°-140°
Machine Dimension 2015*1320*1350

After sale service

Our company can support one year warranty. The engineer can supply oversea after sale service during one year warranty.

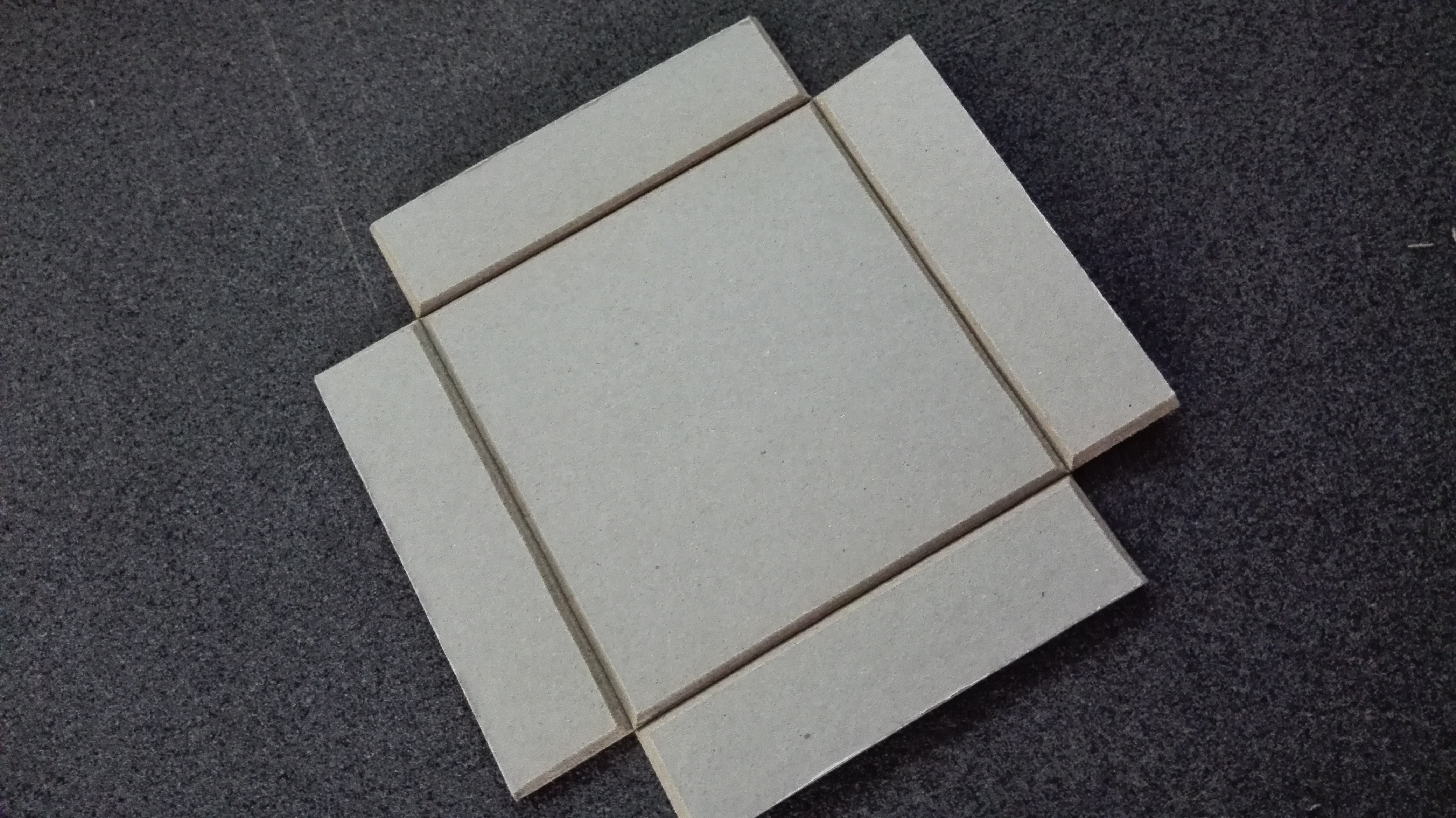

samples

Maxwell Tech is mainly engaged in the R&D、Design、 Produce and Trade of Paper box making machinery and Carton Machinery. We are located in Shanghai.

Maxwell Tech Focus on:

Paper Box Making machine

Rigid Box Making Machine

Cardboard Grooving Machine

Carton Box Making Machine

Corrugated Box Making Machine

Die Cutting Machine

Photo Frame Making Machine

And the relative cutting spare parts, such as the Blades, cutting mats, control cards, etc.

We have our own factory in Shanghai, China. We have high quality employee team, we have special engineers, and special operators for export work of machines. We are now cooperated with many special factories who produce good quality machines to fulfill our products library, and we also can supply the whole lines for the rigid and carton box making industry. With good quality products and high efficiency service, and the competitive prices, our products are welcomed by many users. Maxwell Tech is happy to offer the technological service for you all the time.

Our products are exported to many countries such as Russia、Iran、Jordan、Egypt、Samoa、Vietnam、India、Turkey、USA, Argentina、Peru、Venezuela、Poland and so on. Our products are popular in the world market, and enjoy a good reputation from our customers. Based on the Technology, Developed by Innovation, joining hands with friends, we are highly welcomes friends from all over the world to cooperate with us, and share our development and progress together.
