Acrylic word cutting,furniture board cutting,MDF frame
cutting,furniture model cutting

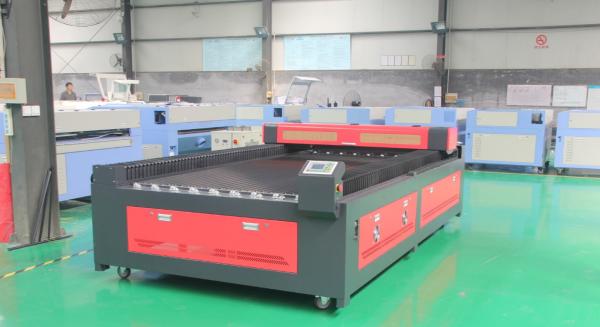

M-1326L Laser Cutting Machine
• Technical Parameters
| Model | Big Size M-1326 Laser Cutting Systems |
| Processing Area | 1300mm*2600mm |
| Laser Power | 80W,100W,130W, 280W |
| Laser Type | Sealed Co2 glass laser tube |
| Working Table | Blades |
| Cooling Mode | water cooling and protection system |
| Graphic Format Supported | BMP,PLT,DST,AI,DXF etc |
| Resetting Positioning Accuracy | ±0.05mm |
| Working Speed | 1-600mm/s |
| Resolution Ratio | ≤0.0125mm |
| Driving Mode | DC0.8A 24V stepper motor |
| Working Voltage | AC 110 - 220V±10%,50 - 60Hz,10A max |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |
| Driving System | Stepper(option servo) |
Application Industry:
Advertising,model,art and craft,furniture, etc.
Application Materials:
acrylic,MDF,acrylic,bamboo board,foam,glass,etc.
Application Show:
Acrylic word cutting,furniture board cutting,MDF frame
cutting,furniture model cutting,etc.
Machine Characteristics
1.The machine adopt advanced DSP control system which continue and
optimize the cutting speed, processing path, improve the working
efficy. the clearance compensation ensure the processing quality.
2.Fully supported CAD,CORELDRAW,PHOTOSHOP software, friendly
man-computer interface.
3.In the process of designing and producing-----stable mechanical
design, imported linear guide rail and precision gear, make sure
the high speed and high precision.
4. Special treatment easily changeable blade or honeycomb
worktable, easy maintance.
5.Widely uesed, make the large size and kinds of common board
processing by laser machine possible
6.Reasonable design of laser line with the industry water chiller,
keep the same power-force on each spot, ensure the quality of
cutting
7.Multi-document function: the machine can store 256 files. the
machine can still work out of computer.
